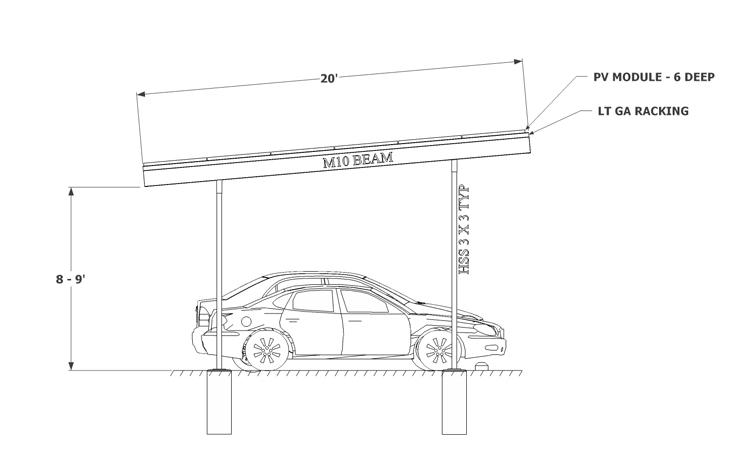

Solar Carport sketch two column

Two Column Single


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with two columns every bay " two car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

Two Column Double


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with two columns every bay "four car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

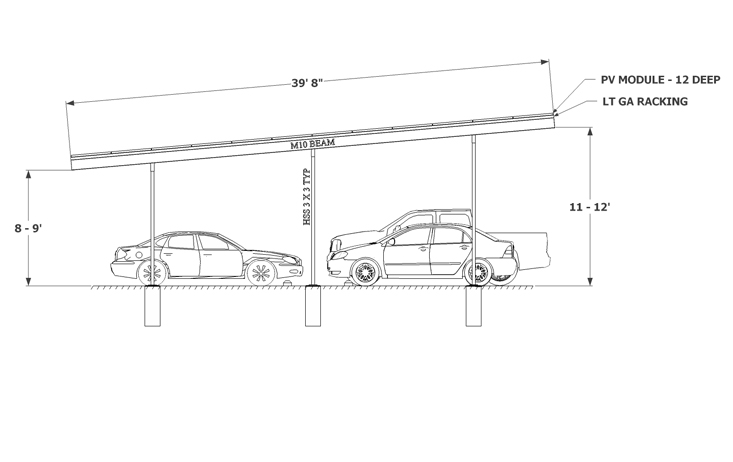

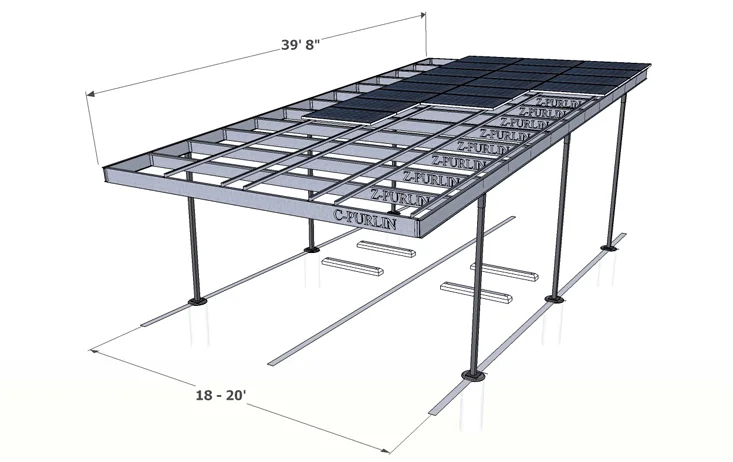

Three Column Double


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with Three columns every bay "four car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

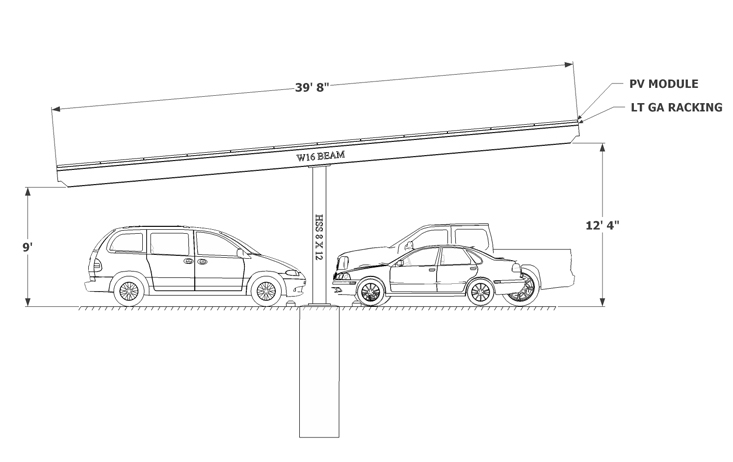

Solar Carport sketch Single Column

Single Column Single


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with one column every bay " two car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

Solar Carport Singe Column T 4.jpg

Single Column Single T


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with one column every bay " two car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

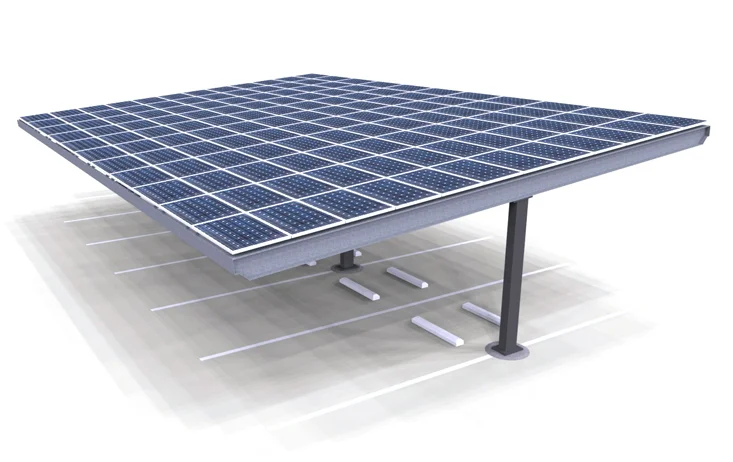

Solar Carport sketch Single Column

Single Column Double


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking

OPTIONS:

Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting


This solar ready carport is configured with one column every bay " four car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

Single Purlin Over w/End Cantilever


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
8' Overhangs at group ends

OPTIONS:

Fixed Tilt Slope up to 10º
Roof Sheeting



This solar ready carport is configured with one column every bay " two car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

Double Purlin Over w/End Cantilever


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
8' Overhangs at group ends

OPTIONS:

Fixed Tilt Slope up to 10º
Roof Sheeting



This solar ready carport is configured with one column every bay " four car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
8' Overhangs at group ends

OPTIONS:

Fixed Tilt Slope up to 10º



This solar ready carport is configured with Two column every bay " two or three car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
8' Overhangs at group ends

OPTIONS:

Fixed Tilt Slope up to 10º



This solar ready carport is configured with Two column every bay " four car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.

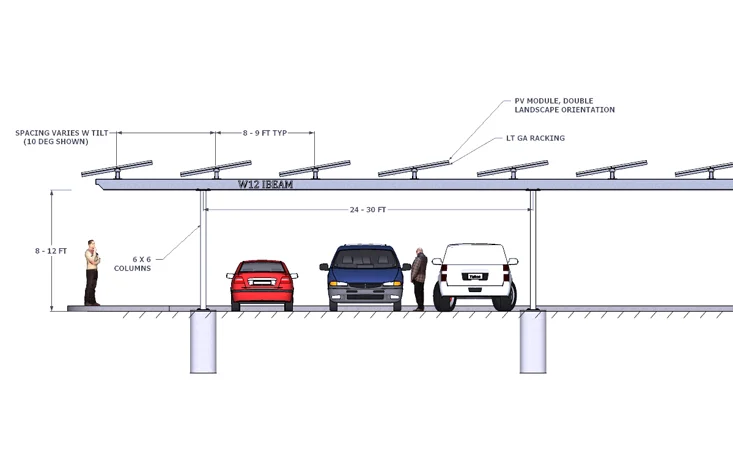

Louvered Multi-Lane Area


Style Sheet

Color Chart


DESIGN CRITERIA

Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed

COLUMNS

HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized

BEAMS

Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized

PURLINS

16 GA. Cold Rolled G-90 Galvanized Steel

RACKING:

16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly

STANDARD FEATURES:

Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
8' Overhangs at group ends

OPTIONS:

Fixed Tilt Slope up to 10º



This solar ready carport is configured with Two column every bay and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.
